Photovoltaic set 6,000 Wp with storage – Anker SOLIX Solarbank Max

This complete set combines 12 bifacial 500 Wp full-black solar modules (6,000 Wp) with the Anker SOLIX Solarbank Max. Storage and bidirectional inverter are contained in one device. With up to 10 kW solar input, 3 MPP trackers, and a storage base starting at 7 kWh (modular up to 42 kWh), this is the most powerful Solarbank class from Anker – your roof becomes a true home energy center.

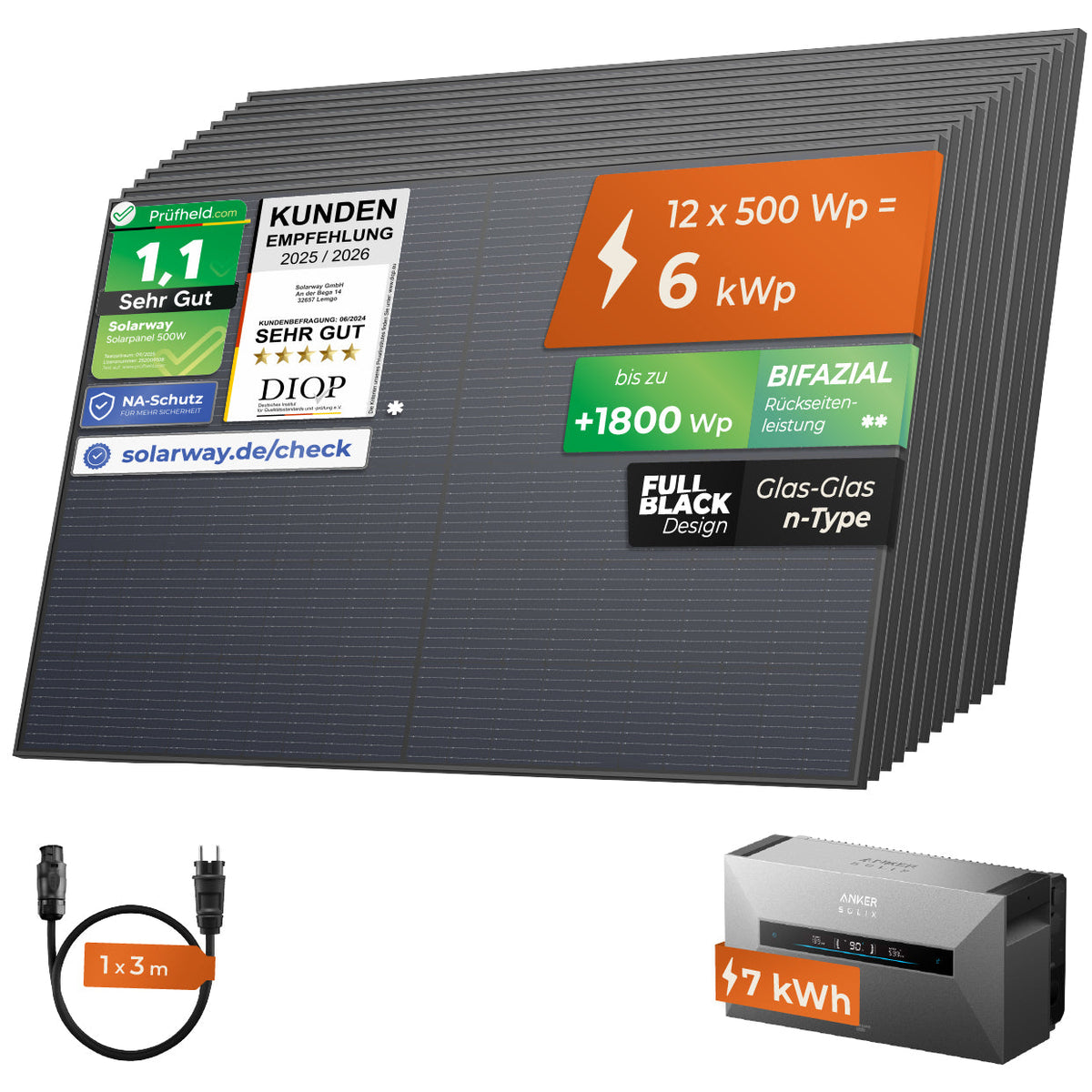

Scope of delivery of the complete set

• 12 × bifacial full-black solar module 500 Wp, n-type glass/glass (6,000 Wp total power, 1960 × 1134 × 30 mm)
• 1 × Anker SOLIX Solarbank Max – main module with integrated bidirectional inverter
• 1 × AC connection cable

Higher yield through bifacial modules

The bifacial glass-glass modules of the latest n-type generation absorb sunlight from the back as well and deliver noticeably higher yields depending on the surface compared to conventional modules – with an efficiency of around 23%. With 10,000 Wp module power, you can reliably charge the storage even on weaker days while covering a large part of your household consumption directly.

The storage: Anker SOLIX Solarbank Max

The Solarbank Max combines storage, bidirectional inverter, and solar hub in one device and is designed for larger PV systems up to 10 kW.

• LiFePO4 battery (rechargeable Li-ion, LFP), 10,000 charging cycles, 100% depth of discharge
• 3 MPP trackers, up to 10 kW solar input, MPPT voltage range 30–550 V
• Rated output power 3.5 kW (Schuko/Wieland connection); up to 5 kW via hardwiring (rest of Europe) or 4.6 kW (Germany)
• Emergency power/backup output: 3.5 kW continuous, peak load 7,500 W (10 s) / 10,000 W (1 s)
• Protection class IP66, −20 to 55 °C, corrosion protection C5-M, natural convection (fanless)
• WLAN & RS485, 10-year manufacturer warranty
• Installation standing or on a base (optional), indoor or outdoor

Scalable storage

The Solarbank Max starts with a main module and can be stacked with expansion batteries – without any additional wiring:

Installation & Registration

Important: Unlike small plug-in balcony power plants (feed-in limit 800 W), the Solarbank Max, with 3.5–4.6 kW, is significantly above the threshold for plug-in solar devices. Therefore, the following applies to this set:

• Connection and commissioning by a qualified electrician
• Registration with the responsible grid operator before commissioning
• Registration in the market master data register (Marktstammdatenregister)

The set is therefore not a pure "plug & play" balcony power plant, but a full-fledged, grid-connected PV storage solution for homes or businesses.

Emergency power during power outages

Via the AC backup output, the Solarbank Max continues to supply important consumers even during a grid failure – continuously up to 3.5 kW, temporarily (peak load) up to 10 kW.

Frequently asked questions

How large is the storage and can I expand it? The base has 7 kWh. With up to five expansion batteries, you can expand in stages up to 42 kWh – simply stacked, without additional wiring.

Do I need an electrician for the installation? Yes. Since the output power is above the 800 W threshold for balcony power plants, connection by a qualified electrician and registration with the grid operator are required.

Does the set work during a power outage? Yes. Via the emergency power/backup output, you continue to supply consumers with up to 3.5 kW continuously, and even significantly more for short periods.
