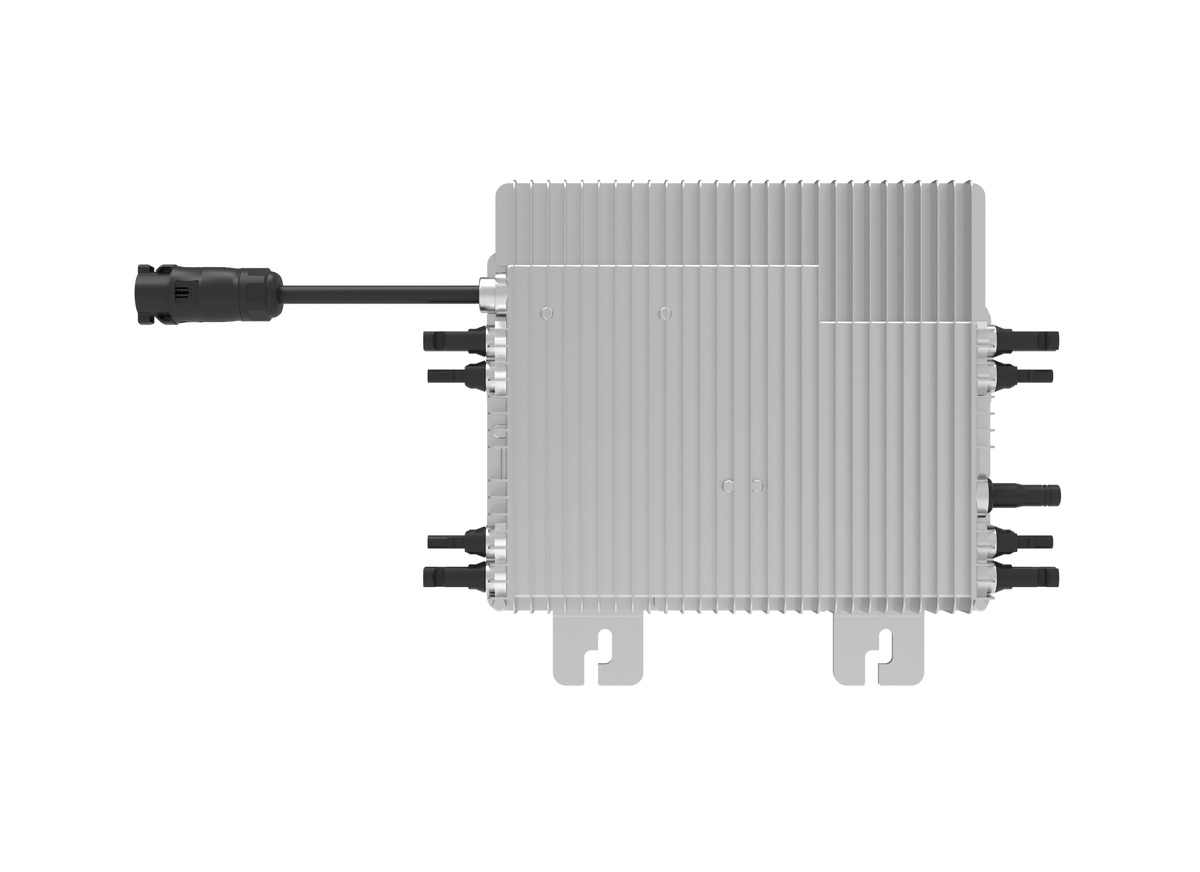

Deye SUN-M200G4-EU-Q0 Mikro-Wechselrichter 2000W

Deye SUN-M200G4-EU-Q0 – 2000W microinverter with 4 MPPT for your balcony power plant

The Deye SUN-M200G4-EU-Q0 is a high-performance microinverter specifically designed for balcony power plants and compact PV systems. With 2000W of output power and four independent MPP trackers, it maximizes yield from up to four modules – even with different orientations or partial shading. Thanks to plug-and-play installation and Wi-Fi app control, implementing sustainable energy generation is simple.

Your benefits at a glance

• 4 independent MPP trackers – each module is individually monitored and optimized for maximum yield
• 2000W output power – up to 4 modules with approx. 210–700 Wp each can be connected
• High efficiency – up to 96.5% efficiency and over 99% MPPT efficiency (99.9% peak efficiency)
• IP67 protection class – dust and waterproof for safe outdoor use
• Integrated Wi-Fi – real-time monitoring via the Deye Cloud app, no additional devices required
• Plug & Play – MC4-EVO2 connectors, direct connection to the power socket
• VDE-AR-N 4105 certified with integrated grid and system protection (NA protection) and surge protection
• 15-year manufacturer warranty

Important note on registration

For a feed-in capacity exceeding 800W, registration with the grid operator is mandatory, and the installation must be carried out by a qualified electrician. The output power can be limited accordingly if required.

Technical specifications

• Output power: up to 2000W
• MPP trackers: 4 independent (4 inputs)
• Recommended DC power: approx. 210–700 Wp per module
• MPPT voltage range: 16–60V
• Efficiency: up to 96.5% (MPPT > 99%)
• Communication: integrated Wi-Fi, Deye Cloud app
• Protection class: IP67
• Connection: MC4-EVO2 Plug & Play
• Certification: VDE-AR-N 4105, NA protection
• Manufacturer warranty: 15 years

Frequently asked questions

How many modules can I connect?

Thanks to four independent MPP trackers, up to four modules of approximately 210–700 Wp each can be connected and optimized individually.

Do I need to register if I exceed 800W?

Yes. For a feed-in capacity exceeding 800W, registration with the grid operator and installation by an electrician are required.

How do I monitor performance?

You can view all performance data in real-time via the integrated Wi-Fi and the Deye Cloud app.

Manufacturer information

Ningbo Deye Technology Co., Ltd.
No. 26-30 Yongjiang South Road, Beilun District, Ningbo, Zhejiang 315806, China

EU responsible person:
Deye Neue Energie GmbH
Nordostpark 98-102, 90411 Nuremberg, Germany
