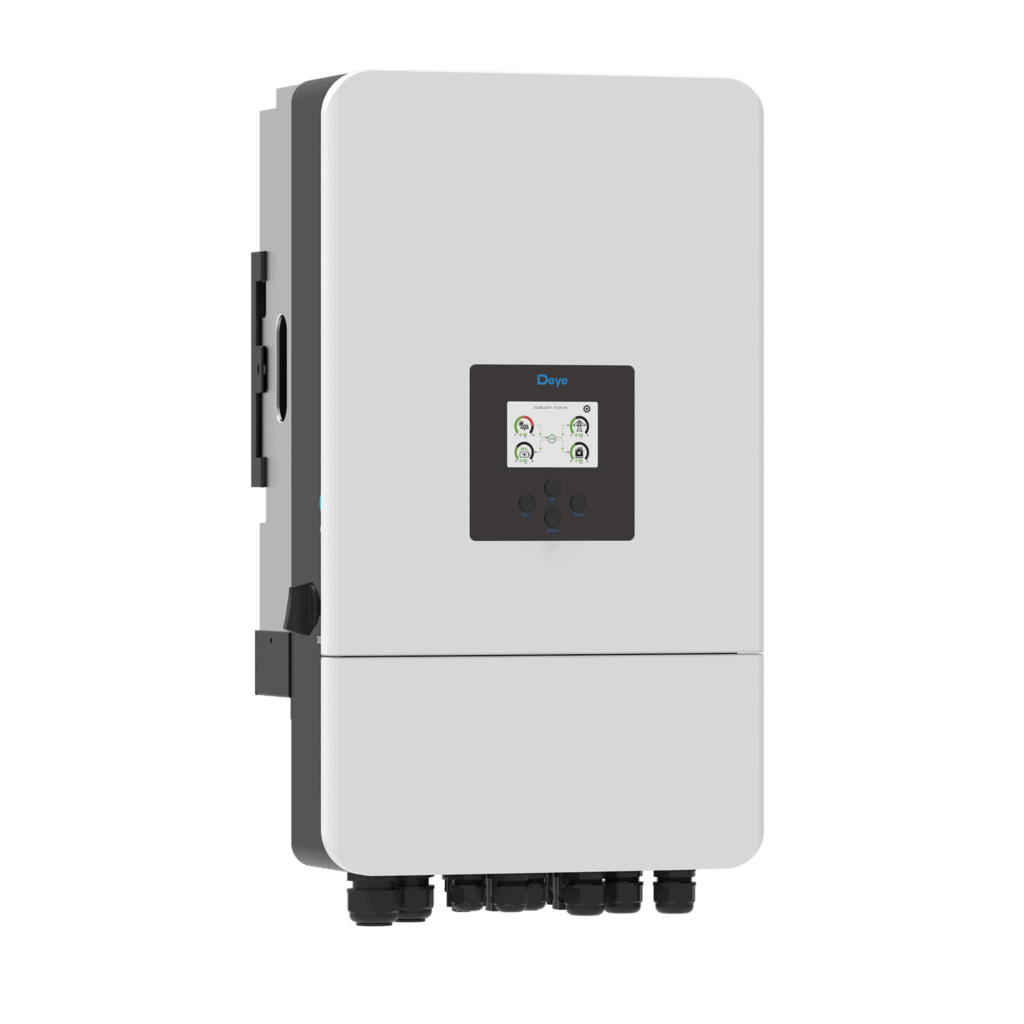

Deye SUN-15K-SG05LP3-EU-SM2 – 15 kW three-phase hybrid inverter

The Deye SUN-15K-SG05LP3-EU-SM2 is a high-performance three-phase hybrid inverter for modern photovoltaic systems in residential, commercial, and agricultural settings. With 15 kW AC rated power, support for 48 V low-voltage battery systems, and intelligent energy management, you can maximize your self-consumption – including reliable emergency power supply.

Thanks to 2 MPP trackers, up to 22.5 kW PV input power, and a charge/discharge current of up to 280–350 A, it is ideally suited for large solar installations with battery storage. Existing PV systems can also be retrofitted via AC coupling.

Highlights

• 15 kW three-phase hybrid inverter
• Compatible with 48 V low-voltage batteries
• 2 independent MPP trackers for optimal yields
• Up to 22.5 kW PV input power
• 100% unbalanced load distribution on all phases
• Emergency power and off-grid operation possible
• AC and DC coupling for new and existing systems
• Parallel connection of up to 10 units
• IP65 protection class for indoor and outdoor installation
• Wi-Fi, LAN, RS485, RS232, and CAN communication (partially optional)

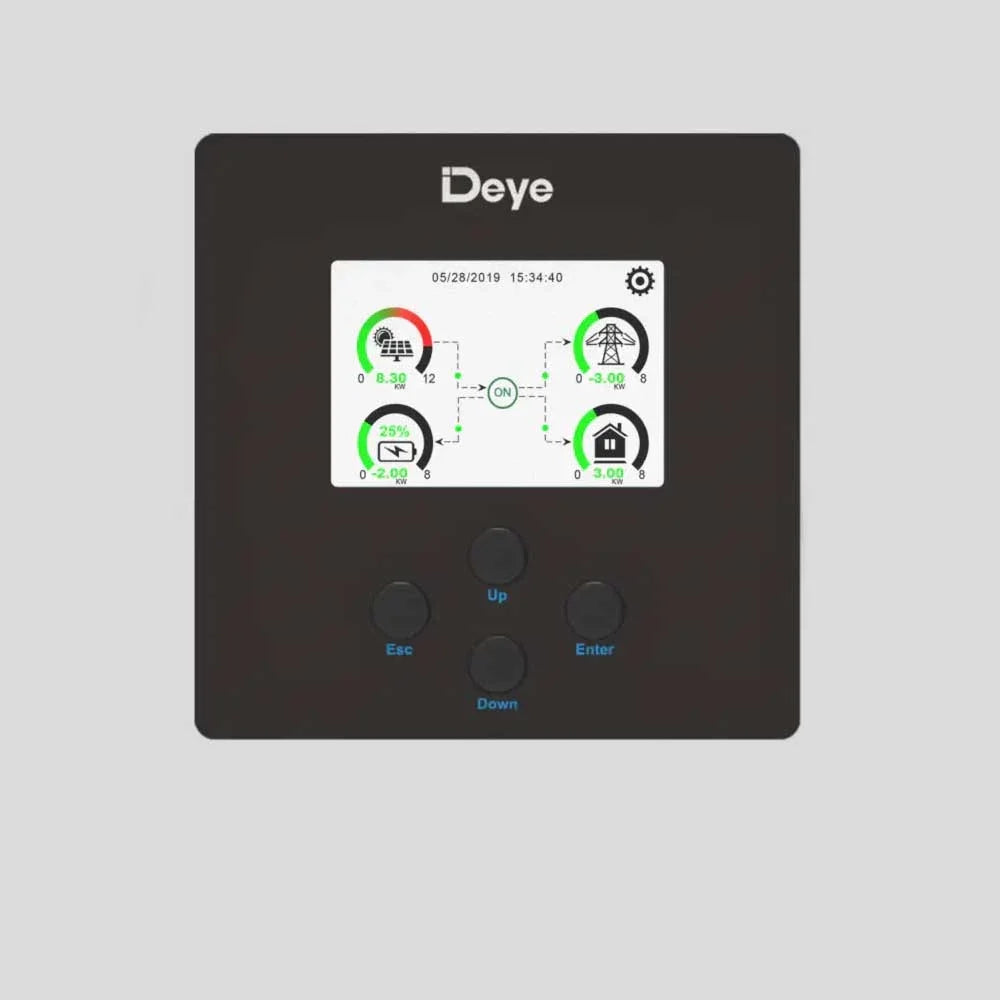

• Intelligent remote monitoring via app and web portal

Technical specifications

• AC rated power: 15,000 W
• Max. PV power: 22,500 W
• Battery voltage: 48 V
• MPPT trackers: 2
• Max. DC voltage: 800 V
• Protection class: IP65
• Efficiency: up to 97.6%
• Dimensions: 750 × 456 × 268.5 mm
• Weight: 50.6 kg
• Operating temperature: −40 °C to +60 °C

Frequently asked questions

Which systems is this inverter suitable for?

For large PV systems with battery storage in residential, commercial, and agricultural areas – thanks to 15 kW power and up to 22.5 kW PV input.

Can I retrofit an existing PV system?

Yes. Existing systems can be easily retrofitted via AC coupling; DC coupling is also possible.

Is emergency power possible?

Yes. The inverter supports emergency power and off-grid operation and can be connected in parallel for up to 10 units.
