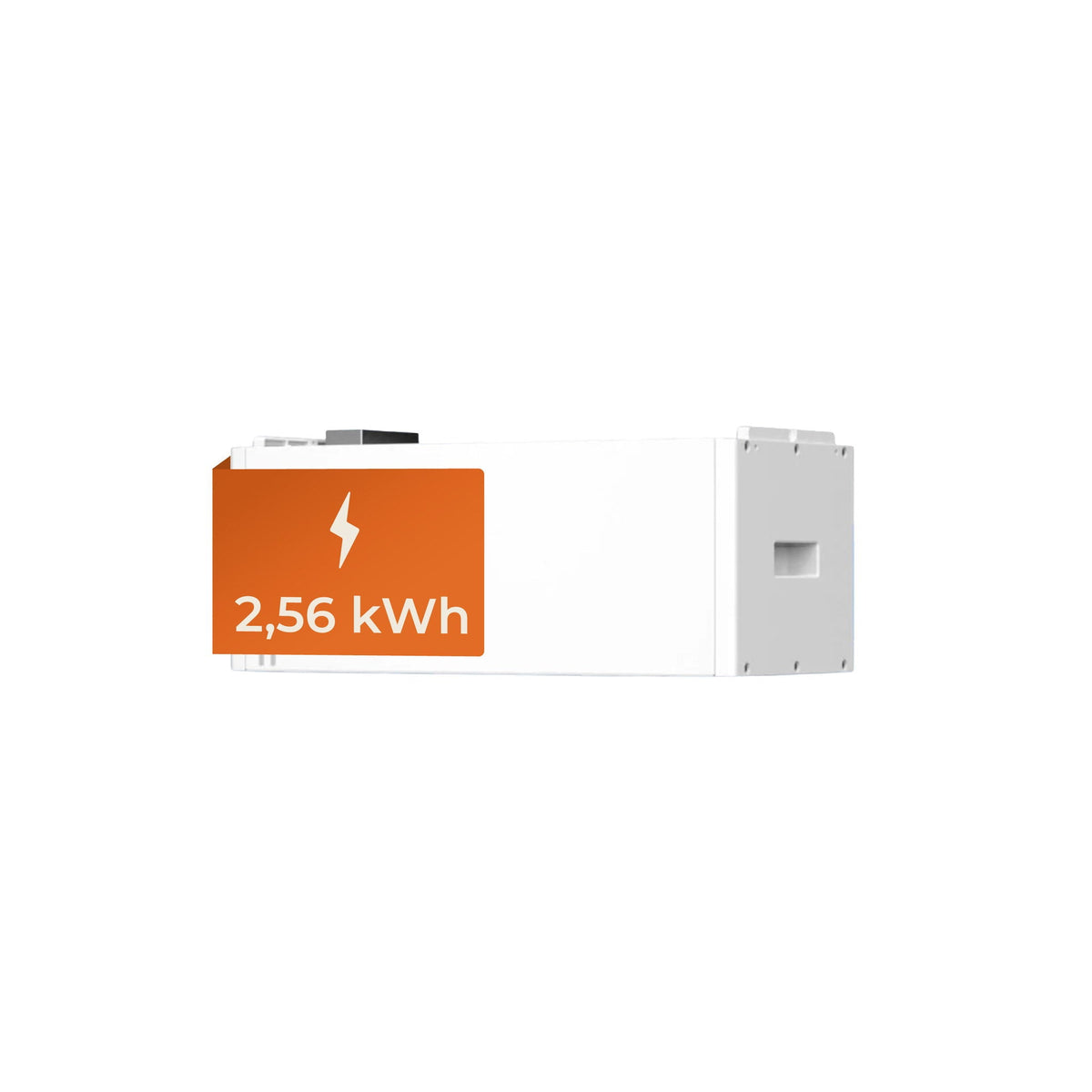

BYD Battery-Box HVS+ Batteriemodul 2,56 kWh | Speichererweiterung | 10 Jahre Garantie
BYD Battery-Box HVS+ Battery Module 2.56 kWh – Battery module for expanding your storage towerWith the BYD Battery-Box HVS+ battery module, you can increase your existing BYD storage tower by 2.56 kWh of usable energy. The cobalt-free LFP cells correspond to those...
PRODUKTDETAILS
Alle wichtigen Informationen.
BYD Battery-Box HVS+ Battery Module 2.56 kWh – Battery module for expanding your storage tower
With the BYD Battery-Box HVS+ battery module, you can increase your existing BYD storage tower by 2.56 kWh of usable energy. The cobalt-free LFP cells correspond to those of the base unit, allowing the tower to be upgraded later without a system change. Please ensure that the module matches the series already installed.
Advantages at a glance
- Subsequent expansion without system change
- Cobalt-free LFP cells
- Identical design to the base unit modules
- Tool-free assembly in the existing tower
Technical data
| Usable energy | 2.56 kWh |
|---|---|
| Nominal voltage | 102.4 V |
| Operating voltage | 80 – 115.2 V |
| Battery type | LFP (Lithium Iron Phosphate) |
| Max. continuous current | 25 A |
| Peak current | 55 A (15 s) |
| Efficiency | ≥ 95 % |
| Communication | CAN / RS485 |
| Protection class | IP55 |
| Operating temperature | −10 °C to +50 °C |
| Dimensions (H × W × D) | 282 × 610 × 240 mm |
| Weight | 38.5 kg |
| Certifications | VDE 2510-50, IEC 62619, CE, UKCA, UN 38.3 |
| Warranty | 10 years |
Compatibility and notes
Before ordering, please check which series your existing tower belongs to – the modules of the HVS+, HVM/HVM+, and HVB series are not interchangeable.
Information based on the manufacturer's data sheet. Technical changes and errors excepted; illustrations may differ from the scope of delivery.
